IS-103SD

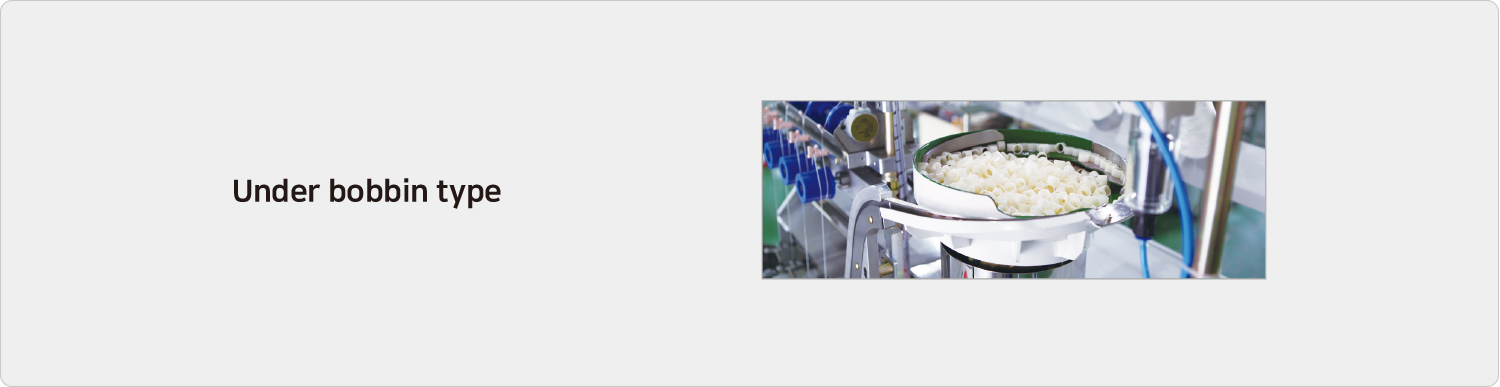

Under bobbin
Under-bobbin winding machine
for dental floss, embroidery thread,
bonded thread
Spindle rotation speed in acceleration and deceleration can be adjusted in accordance with the characteristics of the yarn, so high-quality winding is possible.
Features
MINIMUM DOFF TIME Fully automated bobbin exchanging operation from supplying bobbins to its transferring, exchanging
and yarn connection within a least amount of time to make it possible to minimize labor costs as well as increase productivity
TOUCH SCREEN / DIGITAL COUNTER Maximize convenience with a simple touch input method, target take-up length is
effectively controlled by pre-set take-up length parameter on the digital counter
AIR DOFFING SYSTEM Enables to supplying bobbins from feeding, transmitting, exchanging with maximum convenience
DROPPER MOTION Yarn breakage is instantly detected by dropper motion for immediate remedial actions
PRESS ROLLER Motion guide enables a highest quality in relation to the wound shape on cones which is a highly sought-
after quality in the industry
SPEED CONTROL Possible to regulate acceleration and reduction of the spindle speed according to thread type by inverter
installation

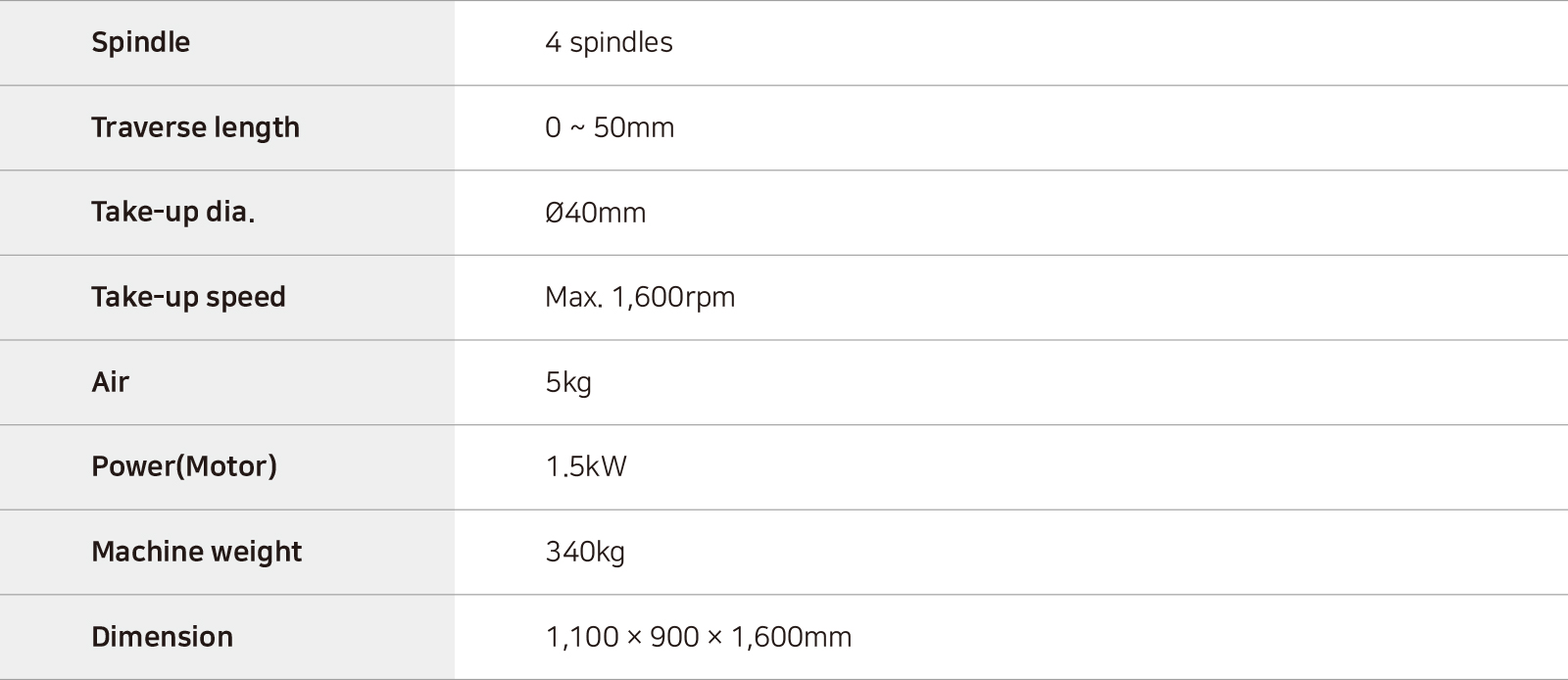

Specifications
